Beskrivning
Pallet scale with stainless steel load support (IP67) and stainless steel display device (IP68), verification optional
Technical Data
| Weighing capacity [Max] | 1500 kg |
| Readability [d] | 0,5 kg |
| Verification scale interval [e] | 0,5 kg |
| Units | kg, g, ffa, PCS, % |
| Minimum weight [Min] (verifiable) | 10 kg |

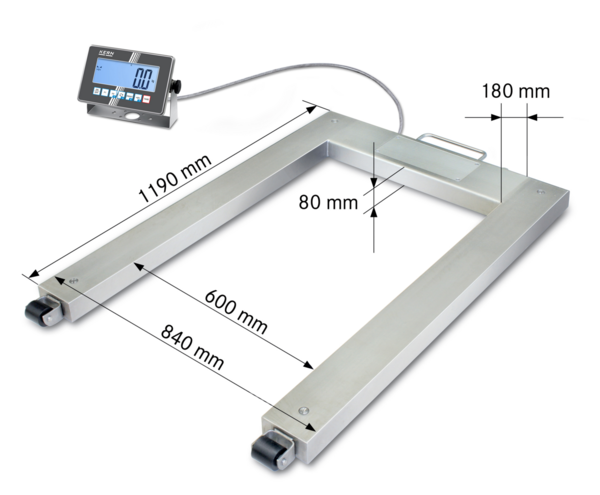

| Dimensions weighing platform (W×D×H) | 1361×840×80 mm |
| Dimensions weighing surface (W×D) | 1190×840 mm |
| Reproducibility | 0,5 kg |
| Linearity | ± 0,5 kg |
| Ambient temperature | -10 °C – 40 °C |
| Smallest piece weight when piece counting – normal conditions | 5 kg |
| Conformity assessment possible ex works | |
| Display type | LCD |
| Display digit height | 48 mm |
| Material weighing plate | stainless steel |
| Material platform | stainless steel |
| Display device cable length | 5 m |
| Tolerance weighing | |
| Tolerance weighing – type of signal | acoustically |
| Net weight approx. | 55 kg |
| IP protection – complete device | – |
| IP protection – display | IP68 |
| IP protection – platform | IP67 |
| IP protection – load cell | IP67 |
| Construction type of the scale | Single-range balance |
